Syntax SV HD audio video connector

Syntax® SV

Audio/Video connectors
and stage boxes

Syntax® SV

Audio/Video connectors
and stage boxes

A bunch of new ideas for your business. A whole series of groundbreaking products specifically designed for broadcasting and HD audio and video engineering.

  • Audio/video broadcasting made simple

    Audio/video broadcasting
    made simple

    Manage multiple audio and video signals in the same connector

    Manage multiple audio and video signals
    in the same connector

    The Syntax® SV Audio/Video connectors have been designed for professional broadcasting, and are especially suitable for outdoor usage even in harsh conditions. The SV range include inline and panel mount connectors, male and female, as well as the Syntax 7YVD6DG8HD combo audio/video cable with 6 video and 8 audio channels, and male or female break-out boxes. This insert arrangement houses 24 audio signal contacts and 6 video coaxial contacts suited for RG59 coaxial cable. compliant with SAE-AS50151 standard (formerly known as MIL-C-5015) and based on VG 95234.

     Syntax SV - multipin HD audio video connector with rubber locking ring

  • SV Series features

    SV Series features


    Compliant with SAE-AS50151 (formerly MIL-C-5015) and based on VG 95234 standards
    Aluminium alloy shells with abrasion resistant black electrophoresis finish
    Audible lock-up recognition system guaranteed for over 2000 mating and unmating cycles
    Metal or rubber coated locking rings specifically designed for easy coupling
    Bayonet lock with stainless steel safety pin
    Gold plated machined contacts for quality signal transmission and long term reliability
    Chloroprene high performance insulating insert allowing easy contact insertion and removal for fast assembling or repair operations
    Cable gland  retention system, ensures waterproof sealing and good strain relief at the cable entry
    Heavy-duty metal cable grips with wire mesh are available on request
    IP67 waterproof (when mated) for outdoor applications
    IP67 caps for waterproof protection on unmated connectors

  • Inline and panel mount

    Inline and panel mount

    SV series

    SV series
  • Syntax SV A/V inline male connector

    Inline male

    Inline male

    SV series

    SV series

    Part NumberDescription
    SV25/6MVRGCMON0SV Male Inline
  • Syntax SV A/V inline female connector

    Inline female

    Inline female

    SV series

    SV series


    Part NumberDescription
    SV25/6FV-GCMON0SV Female Inline
  • Syntax SV A/V panel male connector

    Panel male

    Panel male

    SV series

    SV series

    Part NumberDescription
    SV25/6MPRGC0000SV Male Panel
  • Syntax SV A/V panel female connector

    Panel female

    Panel female

    SV series

    SV series

    Part NumberDescription
    SV25/6FP-GC0000SV Female Panel

  • Contacts and layout

    Contacts and layout

    RG 59 | Size 20 | Crimp | Gold

    RG 59 | Size 20 | Crimp | Gold
  • RG 59 Female

    RG 59 Female

    RG 59 Female

    Crimp | Gold

    Crimp | Gold

    Part Number SVKP59CXGFC
  • RG 59 Male

    RG 59 Male

    RG 59 Male

    Crimp | Gold

    Crimp | Gold

    Part Number SVKP59CXGMC
  • Size 20 Female

    Size 20 Female

    Size 20 Female

    Crimp | Gold

    Crimp | Gold

    Part Number SVKP20GFC
  • Size 20 Male

    Size 20 Male

    Size 20 Male

    Crimp | Gold

    Crimp | Gold

    Part Number SVKP20GMC
  • Waterproof your connectors

    Waterproof your connectors

    Waterproof your connectors

    IP67 Protection caps

    IP67 Protection caps

    Environmental caps are available on request and provide complete IP67 protection on unmated connectors. The use of protective caps results in extended life span of the connectors as the mating threads are protected against damage from impacts and improved safety as contacts are protected against dust and water even when the connectors are not mated. For positive lacing, the IP67 caps are supplied with a special high-resistance lanyard made up of seven stainless strands, coated with anti-scraping black teflon tubing. On cable connectors, the lanyard is laced to a specific housing on the connector’s backshell.

    Discover more

  • The perfect match
    for the SV series

    The perfect match
    for the SV series

    Associated Syntax® cable

    Associated Syntax® cable

  • Syntax® Hybrid cable

    Syntax® Hybrid cable

    CablePart No.
    6 x video | 8 x digital7YVD6DG8HD

    More info on Syntax Cable website

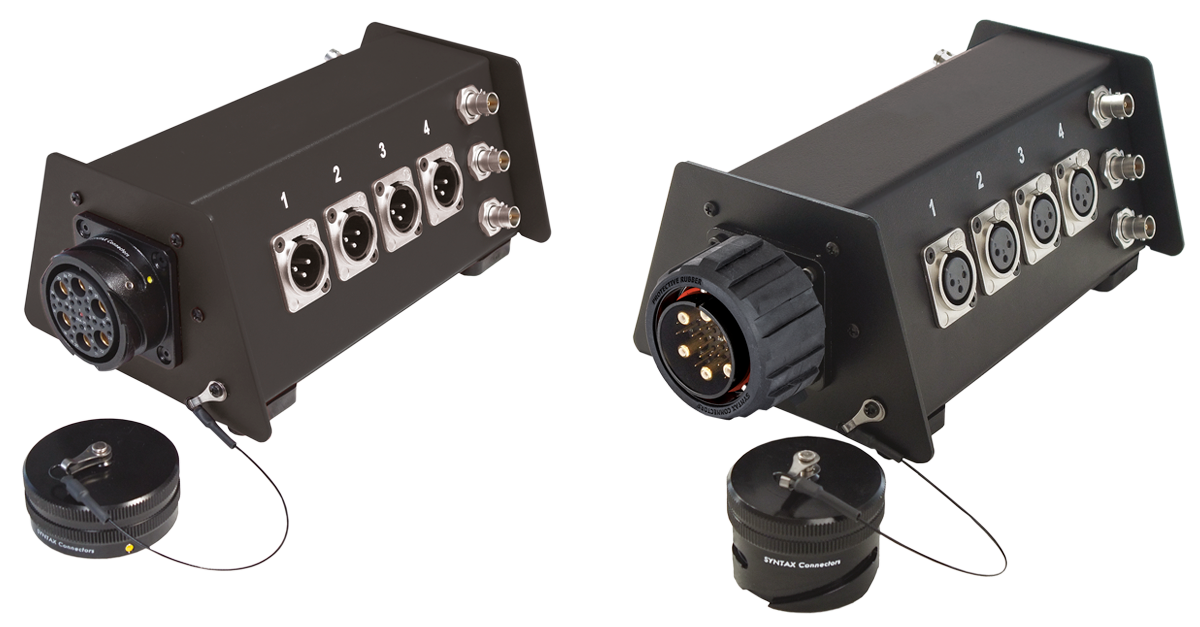

  • Stage box Cronista

    Stage box Cronista

    Break-out or break-in stage boxes with SV combo multipin connector and 8 XLRs + 6 BNCs

    Break-out or break-in stage boxes with SV combi multipin connector and 8 XLRs + 6 BNCs

    Steel stage box for audio and video signal distribution. Break-out box version features a male Syntax SV 25/6 multipin audio/video combi connector with female XLRs and BNCs. The break-in version, on the other hand, features a female Syntax SV 25/6 with male XLRs and BNCs.

     Break-out or break-in stage boxes with SV multipin connector and 8 XLR + 6 BNC

  • Break-in Box configuration

    Break-in Box configuration

    Signal distribution is obtained through the exclusive Syntax SV multipin connector (male or female), with 24 gold-plated pins for audio signal and 6 gold-plated pins for 75 Ohm video signal . Protection cap is provided.

  • Break-out Box configuration

    Break-out Box configuration

    Audio connection through 8 XLR panel (female or male) 3-pin connectors, arranged in  two lines of 4, one per each side. Video connection through 6 BNC panel connectors arranged in two lines of 3, one per each side, with earth connection detached from the frame.

  • Frame

    Frame

    Steel stage box with trapezoidal section and high mechanical resistance sides, painted in polyepoxidic  anti-scratch black paint. Output connectors on the leaning sides guarantee easy channel identification whan connecting. Channel numbering by indelible laser-carving is also provided. 4 nylon feet sustain the base, ensuring stability and the necessary ground-detachment. On the side opposite to the multipin connector, three holes have been specifically designed for vertical hooking.

  • Internal connections

    Internal connections

    The audio interconnection between multipin connector and XLR connectors is arranged through a shielded balanced cable, made of 2 signal conductors, 1 drain wire and aluminium foil screen. The multipin connector cabling is attained through crimping, while the XLR connector cabling through soldering.The video interconnection between the multipin connector and BNC connectors is carried out through RG59 75 Ohm double-shielded cable, made of a one-signal conductor, a copper tinned braid shield and an aluminium foil screen. Video channel cabling is carried out through crimping to guarantee a good mechanical resistance and a steady impedance, avoiding signal loss.

  • Overall dimensions

    Overall dimensions
  • Inline female

    Inline female

    Inline female

    Dimensions in mm

    Dimensions in mm

    Shell sizeBØ
    Max    		L1 MaxCable clamp
    metric    		Ø Cable
    Min-Max
    2856.0116M 327 - 25
  • Inline male

    Inline male

    Inline male

    Dimensions in mm

    Dimensions in mm

    Shell sizeAØ Max
    +0/-0.15    		ØC MaxL2 MaxCable clamp
    metric    		Ø cable
    Min-Max
    2846.750116M327 - 25
  • Panel female

    Panel female

    Panel female

    Dimensions in mm

    Dimensions in mm

    Shell
    size    		BØ
    Max    		L3
    Max    		K
    ±0.2    		R
    ±0.1    		S
    ±0.3    		T
    H13
    2856.040.8439.750.83.7

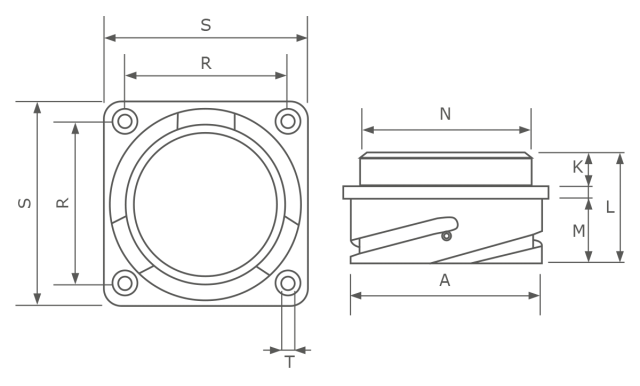

  • Panel male

    Panel male

    Panel male

    Dimensions in mm

    Dimensions in mm

    Shell
    size    		AØ Max
    +0/-0.15    		K
    ±0.2    		L
    ±0.3    		M
    ±0.4/-0    		ØN
    Max    		R
    ±0.1    		S
    ±0.3    		T
    H13
    2846.7435.720.641.439.750.83.7

  • Cut-out dimensions

    Cut-out dimensions

    Panel connectors

    Panel connectors

     Cut-out dimensions
