     Syntax SB - SAE AS50151 & VG95234 - Multipin circular ballast connectors

  • SB Series features

    SB Series features


    Compliant with SAE-AS50151 (formerly MIL-C-5015) and based on VG 95234 standards
    Aluminium alloy shells with abrasion resistant black electrophoresis finish
    Metal or rubber coated locking rings specifically designed for easy coupling
    Silver-plated crimp or solder-type contacts
    Bayonet lock stainless steel safety pin
    Audible lock-up recognition system guaranteed for over 2000 mating and unmating cycles

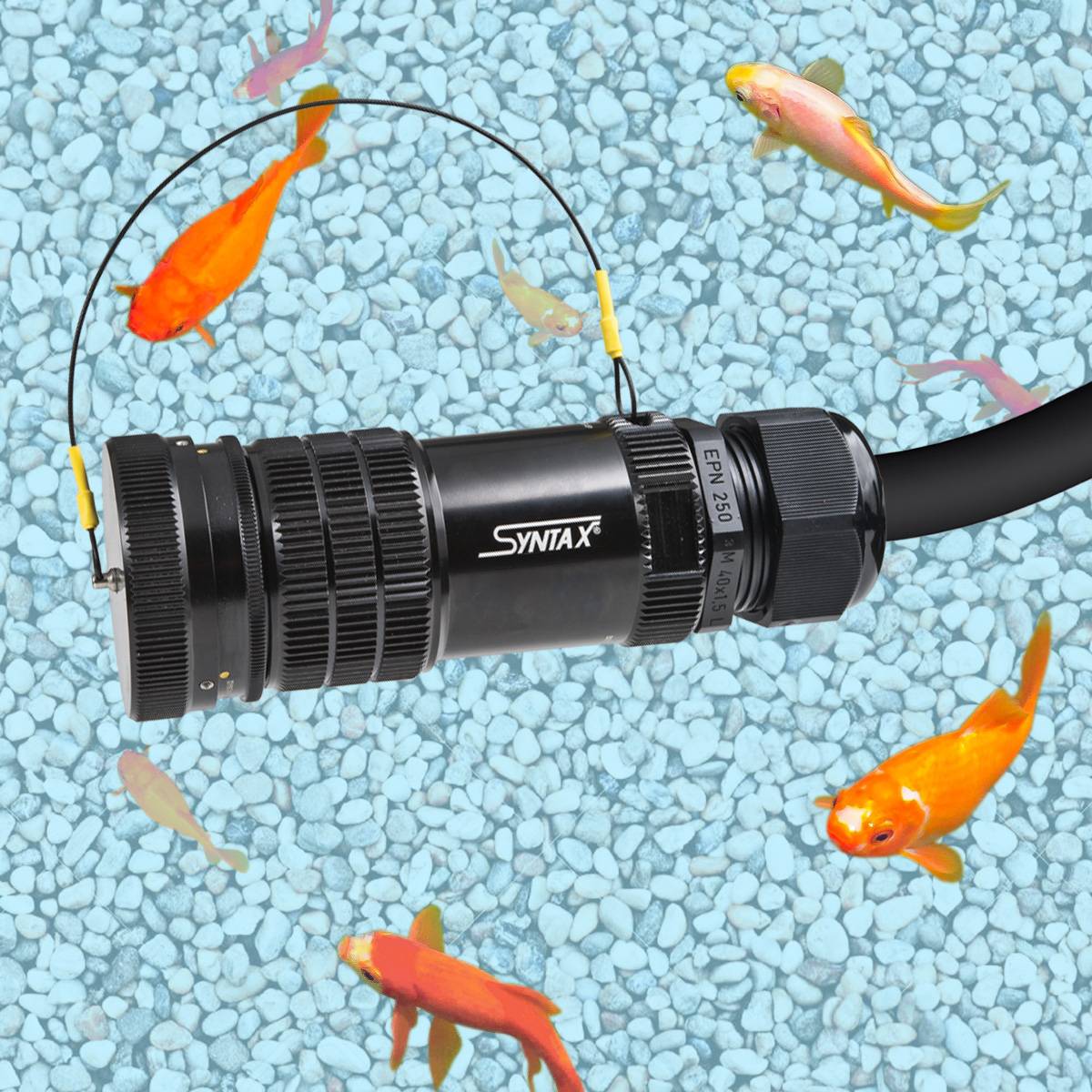

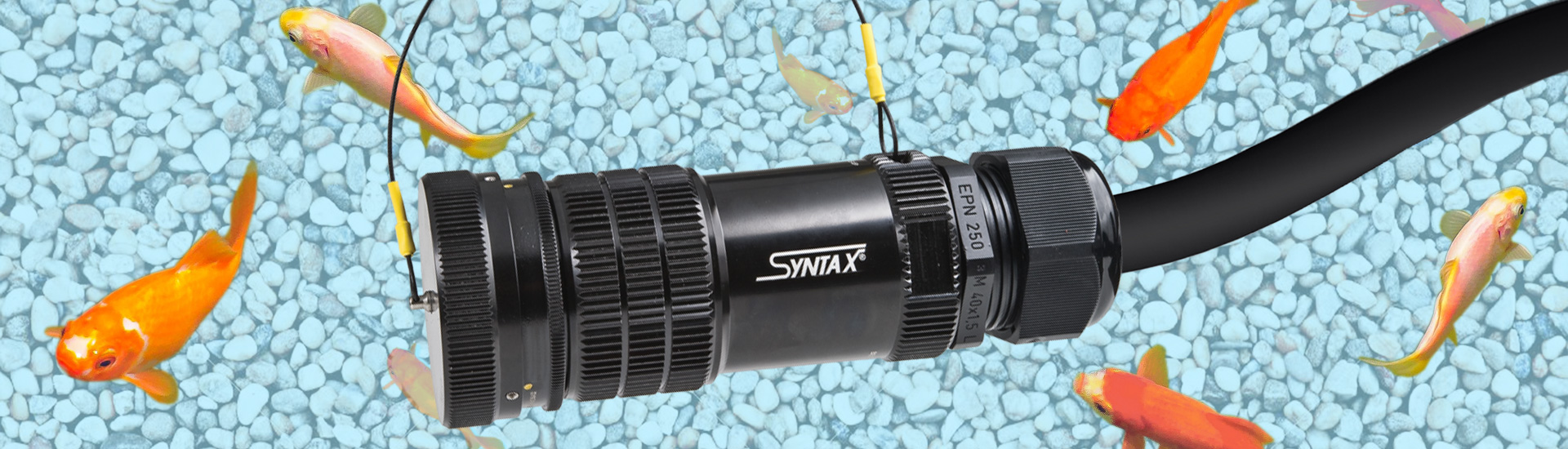

    IP67 waterproof (when mated) for outdoor applications
    IP67 caps for waterproof protection on unmated connectors
    Standard insulating insert range -55° to 125° C (also available -70° to 200° C)

  • Insert arrangement layouts

    Insert arrangement layouts

    Contact types & quantities

    Contact types & quantities
  • 16S-1

    16S-1

    16S-1


    Arrangement16S-1
    Total contacts7
    Contact type(s)Size 16S
    Service ratingA
  • 16-10

    16-10

    16-10


    Arrangement16-10
    Total contacts3
    Contact type(s)Size 12
    Service ratingA
  • 20-15

    20-15

    20-15


    Arrangement20-15
    Total contacts7
    Contact type(s)Size 12
    Service ratingA
  • 22-1

    22-1

    22-1


    Arrangement22-1
    Total contacts2
    Contact type(s)Size 8
    Service ratingD
  • 22-2

    22-2

    22-2


    Arrangement22-2
    Total contacts3
    Contact type(s)Size 8
    Service ratingD
  • 22-22

    22-22

    22-22


    Arrangement22-22
    Total contacts4
    Contact type(s)Size 8
    Service ratingA
  • 24-11

    24-11

    24-11


    Arrangement24-11
    Total contacts9
    Contact type(s)Size 8 (3)
    Size 12 (6)
    Service ratingA
  • 24-2

    24-2

    24-2


    Arrangement24-2
    Total contacts7
    Contact type(s)Size 12
    Service ratingD
  • Always identify your connectors

    Always identify
    your connectors

    Always identify
    your connectors

    New rubber coated locking rings for extreme resistance, great grip and effective color coding

    New rubber coated locking rings for
    extreme resistance, great grip and
    effective color coding

    Extra tough for everyday work, extremely resistant to shocks and compression, smoothest insertion, best grip with or without gloves.The rubber coated version of the locking ring is now available on all the series of Syntax circular multipin connectors. For quick identification of your cables through color coding multiple color options are available in stock (examples in the photo). For special color customizations, according to RAL charts, please contact our Sales department.

    Find out more
  • 28A-9

    28A-9

    28A-9


    Arrangement28A-9
    Total contacts9
    Contact type(s)Size 4 (4)
    Size 16 (5)
    Service ratingA
  • 28-22

    28-22

    28-22


    Arrangement28-22
    Total contacts6
    Contact type(s)Size 4 (3)
    Size 16 (3)
    Service ratingD
  • 28-3

    28-3

    28-3


    Arrangement28-3
    Total contacts3
    Contact type(s)Size 8
    Service ratingE
  • 28-6

    28-6

    28-6


    Arrangement28-6
    Total contacts3
    Contact type(s)Size 4
    Service ratingD
  • 28-10

    28-10

    28-10


    Arrangement28-10
    Total contacts7
    Contact type(s)Size 4 (2)
    Size 8 (2)
    Size 12 (3)
    Service ratingG=D

  • 32A-9

    32A-9

    32A-9


    Arrangement32A-9
    Total contacts9
    Contact type(s)Size 4 (3)
    Size 16 (6)
    Service ratingA
  • 32-5

    32-5

    32-5


    Arrangement32-5
    Total contacts2
    Contact type(s)Size 0
    Service ratingD
  • 40A-10

    40A-10

    40A-10


    Arrangement40A-10
    Total contacts8
    Contact type(s)Size 4 (4)
    Size 16 (4)
    Service ratingD

  • Female contacts

    Female contacts

    Silver | Solder

    Silver | Solder
  • Size 16S

    Size 16S

    Size 16S

    P/N: SVKP16SFSs

    P/N: SVKP16SFSs

    For arrangement type:
    16S-1
  • Size 16

    Size 16

    Size 16

    P/N: SVKP16SFS

    P/N: SVKP16SFS

    For arrangement types:
    28A-9, 28-22, 32A-9, 40A-10
  • Size 12

    Size 12

    Size 12

    P/N: SVKP12SFS

    P/N: SVKP12SFS

    For arrangement types:
    16-10, 20-15, 24-11, 24-2, 28-10
  • Size 8

    Size 8

    Size 8

    P/N: SVKP08SFS

    P/N: SVKP08SFS

    For arrangement types:
    22-1, 22-2, 24-11, 28-3, 28-10
  • Size 4

    Size 4

    Size 4

    P/N: SVKP04SFS

    P/N: SVKP04SFS

    For arrangement types:
    28A-9, 28-22, 28-6, 28-10, 32A-9, 40A-10
  • Size 0

    Size 0

    Size 0

    P/N: SVKP00SFS

    P/N: SVKP00SFS

    For arrangement type:
    32-5

  • Male contacts

    Male contacts

    Silver | Solder

    Silver | Solder
  • Size 16S

    Size 16S

    Size 16S

    P/N: SVKP16SMSs

    P/N: SVKP16SMSs

    For arrangement type:
    16S-1
  • Size 16

    Size 16

    Size 16

    P/N: SVKP16SMS

    P/N: SVKP16SMS

    For arrangement types:
    28A-9, 28-22, 32A-9, 40A-10
  • Size 12

    Size 12

    Size 12

    P/N: SVKP12SMS

    P/N: SVKP12SMS

    For arrangement types:
    16-10, 20-15, 24-11, 24-2, 28-10
  • Size 8

    Size 8

    Size 8

    P/N: SVKP08SMS

    P/N: SVKP08SMS

    For arrangement types:
    22-1, 22-2, 24-11, 28-3, 28-10
  • Size 4

    Size 4

    Size 4

    P/N: SVKP04SMS

    P/N: SVKP04SMS

    For arrangement types:
    28A-9, 28-22, 28-6, 28-10, 32A-9, 40A-10
  • Size 0

    Size 0

    Size 0

    P/N: SVKP00SMS

    P/N: SVKP00SMS

    For arrangement type:
    32-5

  • Technical data

    Technical data
  • Syntax SB - multipin connector series - Ballast and lighting

  • Insert service rating

    Insert service rating

    Standard at sea level

    Standard at sea level

    Service
    rating    		Operating voltage
    DC    		Operating voltage
    AC
    I250 V200 V
    A700 V500 V
    D1250 V900 V
    E1750 V1250 V
    B2450 V1750 V
    C4200 V3000 V

  • Contacts rating

    Contacts rating

    Size 0 - 4 - 8 - 12 - 16 - 16S contacts

    Size 0 - 4 - 8 - 12 - 16 - 16S contacts

    SizeMax currentRated currentMax voltage dropWire section (mm2)Wire section AWG
    0245 A150 A53 mV50÷600
    4135 A80 A85 mV16÷204
    873 A46 A65 mV6÷88
    1241 A23 A63 mV312
    1622 A13 A74 mV1÷1,516
    16S22 A13 A74 mV1÷1,516

  • Dielectric strength

    Dielectric strength

    Standard at sea level

    Standard at sea level

    Service
    rating    		Minimum Flashover
    AC MS    		Test voltage
    AC RMS (Hi Pot)
    I1400 V1000 V
    A2800 V2000 V
    D3600 V2800 V
    E4500 V3500 V
    B5700 V4500 V
    C8500 V7000 V
  • Syntax SB panel connector - grounding

    Grounding connection

    Grounding connection

    Safety is always first

    Safety is always first

    First mate last break earth contacts and earth tags for connector's shell grounding ensure full electrical insulation and make Syntax SB connector series among the safest on the market.
  • Waterproof your connectors Waterproof your connectors

    Waterproof your connectors

    Waterproof your connectors

    IP67 Protection caps

    IP67 Protection caps

    Environmental caps are available on request and provide complete IP67 protection on unmated connectors. The use of protective caps results in extended life span of the connectors as the mating threads are protected against damage from impacts and improved safety as contacts are protected against dust and water even when the connectors are not mated.

    For positive lacing, the IP67 caps are supplied with a special high-resistance lanyard made up of seven stainless strands, coated with anti-scraping black teflon tubing. On cable connectors, the lanyard is laced to a specific housing on the connector’s backshell.

    Discover more

  • Alternate insert rotations

    Alternate insert rotations

  • Example 1
    Front view - Mating side -  Female insert shell rotation

  • Example 2
    Front view - Mating side -  Male insert shell rotation

  • Rotation degrees

    Rotation degrees

    alternate insert rotations

    alternate insert rotations

  • Insert type16S-116-1020-1522-122-222-2224-224-11
    W8090803570-8035
    X-180-110145110-110
    Y-270-250215250-250
    Z280-280325290-280325

  • Insert type28A-928-2228-328-628-1032A-932-540A-10
    W110707070806535-
    X250145145145110135110-
    Y260215215215250225250-
    Z280290290290280275325-
  • Your connector in stainless steel

    Your connector
    in stainless steel

    Your connector
    in stainless steel

    Syntax® SLS series

    Syntax® SLS series

    A new generation of connectors: the new Syntax SLS series is a high-end solution for professional connections, where high precision contact is needed.

    Find out more

  • Cable Glands

    Cable Glands
  • Metric cable gland

    Metric cable gland

    Metric cable gland

    Our metric cable glands are designed for a perfect grip and effortless spanner tight seal. Provided with Neoprene Seal for a perfect IP68 - 5 bar watertight sealing; Blade System for optimal strain relief and cable protection combined with a generous clamping range; multiple threads for secure and rapid assembly. The cable clamping system has been designed not to come loose in case of cord vibration or torsion. Cable gland types and clamping ranges vary according to connector size.

  • Available models

    Available models

    CodeThread sizeDescriptionClamping range (mm)Arrangement types
    MEM 16 x 1.5Normal4.5-1016S-1 / 16-10
    MHM 20 x 1.5Normal6-1220-15
    MIM 20 x 1.5Oversize10-1420-15
    MJM 25 x 1.5Reduced6-1320-15 / 24-2 / 24-11
    MLM 25 x 1.5Oversize13-1820-15 / 24-2 / 24-11
    MNM 32 x 1.5Reduced7-1522-1 / 22-2 / 22-22 / 24-2 / 24-11 / 28A-9 / 28-22 / 28-3 / 28-6 / 28-10 /32A-9 / 32-5
    MMM 32 x 1.5Normal11-2122-1 / 22-2 / 22-22 / 24-2 / 24-11 / 28A-9 / 28-22 / 28-3 / 28-6 / 28-10 /32A-9 / 32-5
    MOM 32 x 1.5Oversize18-2522-1 / 22-2 / 22-22 / 24-2 / 24-11 / 28A-9 / 28-22 / 28-3 / 28-6 / 28-10 /32A-9 / 32-5
    MQM 40 x 1.5Reduced15-2322-1 / 22-2 / 22-22 / 24-2 / 24-11 / 28A-9 / 28-22 / 28-3 / 28-6 / 28-10 /32A-9 / 32-5 / 40A-10
    MPM 40 x 1.5Normal19-2822-1 / 22-2 / 22-22 / 24-2 / 24-11 / 28A-9 / 28-22 / 28-3 / 28-6 / 28-10 /32A-9 / 32-5 / 40A-10
    MRM 40 x 1.5Oversize22-3222-1 / 22-2 / 22-22 / 24-2 / 24-11 / 28A-9 / 28-22 / 28-3 / 28-6 / 28-10 /32A-9 / 32-5 / 40A-10

  • Backshell and metal cable gland

    Backshell
    and metal cable gland

    Besides ensuring an excellent mechanical strain relief keeping the cable in the centre of the connector, metal cable glands are provided with an internal rubber cone bushing ensuring IP67 waterproof protection. The screws in stainless steel have elastic anti-vibration washers. Clamping range varies according to connector size as shown in the following table.

     Syntax SB Ballast connector and metal cable gland
  • Models and dimensions

    Models and dimensions

    Models and dimensions

    Dimensions in mm

    CCodeClamping Range ⌀FY MaxA ±0.2Arrangement types
    8CC38-13.5832.328.116S-1 / 16-10
    12CC511.3-1935.737.320-15 / 22-1 / 22-2 / 22-22
    16CC615.5-23.83943.224-2 / 24-11 / 28A-9 / 28-22 /
    28-3 / 28-6 / 28-10
    20CC723.4-31.844.85432A-9 / 32-5
    28CC930-41.352.363.440A-10

  • Bushing

    Bushing

    Bushing is made of elastometric rubber and used with the metal cable clamp. It allows the use of cables with a diameter smaller than the nominal one.

     Bushing

  • Models and dimensions

    Models and dimensions

    Dimensions in mm

    Part numberFor metal clamp ⌀S⌀K Open⌀K ClosedL
    SBBC3C313.611.15.650.8
    SBBC5C518.913.746.8550.8
    SBBC6C623.71910.950.8
    SBBC7C731.623.815.7450.8
    SBBC3C941.131.7520.750.8
